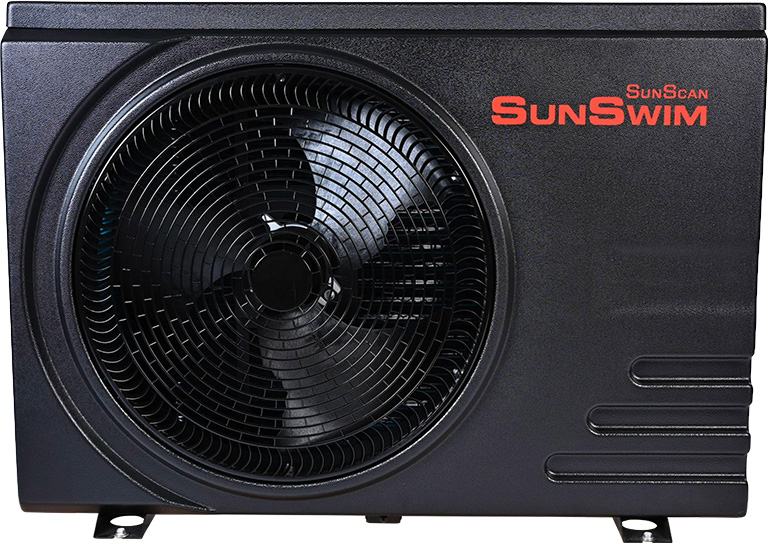

17kW Pool Heat Pump
Heat your pool all year round with SunScans Pool Heat Pumps!
The Sunswim range of heat pumps focus on providing the most pleasant pool temperatures for the least monthly running costs. Maintained correctly it will add value to your home.
Key Features:
Model: SSP-INV017
– Best in class efficiency ensuring maximum savings
– Aesthetically pleasing
– One of the quietest units on the market today
– Due to high performance is able to deliver hot water even in winter
– WiFi enabled
-Easy to install
– Simple to service
Model No. SSP-INV017
Kw rating – 17Kw
Maximum pool size with pool blanket – 85 000L
Heating Capacity1 at Air 26ºC. Hygro 80%. Water 26ºC In, 28ºC Out
Heating Capacity – 16,52 ~ 3,79
Power Input – 2,38 ~ 0,28
Current Input (A) – 11,55 ~ 1,54
COP – 15,17 ~ 7,23
Heating Capacity 2 at Air 15ºC. Hygro 70%. Water 26ºC In, 28ºC Out
Heating Capacity (kW) – 12,61 ~ 2,87
Power Input (kW) – 2,54 ~0,38
Current Input (A) – 11,55
COP – 7,61 ~ 4,96
Cooling Capacity at Air 35ºC . Water 29ºC In, 27ºC
Cooling Capacity（kW) – 8,86 ~ 2,24
Power Input（kW) – 2,47 ~ 0,34
Current Input (A) – 11,65
EER – 6,58 ~ 3,58
Power supply – 230V / 1/ 50 Hz
Max Power Input（kW) – 3,925
Rated Current (A) – 11,55
Refrigerant – R32 / 850g
Heat Exchanger – Titanium
Air Flow Direction – Horizontal
Water Flow Volume – （m3/h) 5,5
Kind of defrost – by 4 way valve
Working temperature range℃） – -15～43
Noise level (dBa) – ≤ 46
Casing Material – ABS plastic
Net Dimensions (L x W x H) – 896*389*641
Package Dimensions (L x W x H) – 990*435*750
Net Weight – 54 kg
Gross Weight – 65 kg
